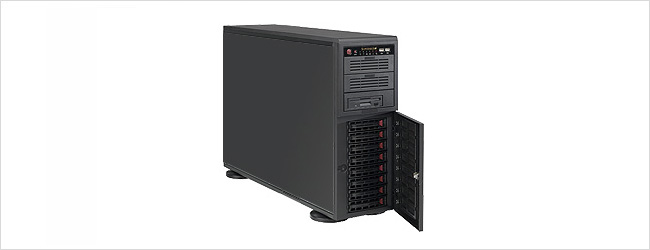

Supermicro 7045A-C3B
Супер сервер Supermicro 7045A-C3B
Раздел: Supermicro Tower 4U
|
Supermicro 7045A-C3B
|
||||||||||
|
|||||||||
|
Характеристики |
|||||||||
|
Материнская плата
Super X7DCA-3
Процессор / Кэш
Программное обеспечение ОС Supports 64-bit Operating Systems Supports 32-bit Operating Systems
Процессор Dual 771-pin LGA Sockets Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below: Quad-Core Intel®
Xeon®Processor
5400/5300 sequence (Harpertown
/Clovertown processor)
up to 3.16 GHz Dual-Core Intel®
Xeon®Processor
5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
Системная шина 1333 / 1066 MHz system bus
Память
Размеры DIMM 512MB, 1GB, 2GB, 4GB, 8GB**
Обнаружение ошибок Corrects single-bit errors Detects double-bit errors (using ECC memory)
Напряжение питания памяти 1.8V only
Объём памяти Six 240-pin DIMM sockets Supports up to 48GB 667/533MHz DDR2 ECC Register memory Memory must be populated in pairs
Тип памяти 667/533MHz Register DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
Интегрированные устройства
Аудио High Definition 7.1 Channel Audio
Генератор тактовых импульсов CK505 chip
IPMI Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (SIMLP) (Optional: AOC-SIMLP-B) (Optional: AOC-SIMLP-3) with 3rd LAN support NOTE: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot
Сетевые платы Intel® Dual 82573V/L Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
SAS LSI SAS1068E RAID 0, 1, 10 support (Optional: AOC-IButton68) RAID 5 support
SATA Intel ICH9R SB SATAII Controller RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux)
Super I/O Winbond 83627DHG chip
Чипсет Intel® 5100 (San Clemente) chipset Intel® ICH9R + PXH-V
Backplane
SC743 SAS / SATA Backplane w/ Enclosure Management
Порты ввода/вывода
Аудио High Definition 7.1 Channel Audio Line-in / Line-out / Microphone Ports
Клавиатура/Мышь PS/2 keyboard and mouse ports
Floppy 1 Floppy controller; 1.44 MB
Параллельный порт 1x ECP / EEP Parallel Port
IDE Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN 2x RJ45 LAN ports
SAS 8 SAS / SATA ports
Serial ATA Six Serial ATA ports Six SATA hard drives supported
Serial Port / Header 1 Fast UART 16550 serial port 1 Header
USB 4x USB rear ports 6x USB internal header 10 total USB ports, 2.0 Compliant
Корпус
Модель SC743TQ-865-SQ
Форм Фактор 4U Rackmountable / Tower Optional Rackmount Kit (CSE-PT26)
Размеры
Глубина 648мм (25.5")
Высота 178мм (7.0")
Вес Брутто 28.6кг (63 lbs)
Доступные цвета Чёрный
Ширина 437мм (17.2")
Передняя панель
Кнопки Power On/Off button System Reset button
Индикаторы Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED
Порты 2x USB Ports
Слоты расширения
PCI 2x 32-bit 33MHz PCI (5V) slots
PCI-Express 1 (x16) PCI-e slot 1 (x4) PCI-e (using x16) slot
PCI-X 2x 64-bit 133/100MHz PCI-X (3.3V) slots
Системный BIOS
Особенности BIOS Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0/2.0 ACPI 1.0 (limited) USB Keyboard support Hardware BIOS Virus protection
Тип BIOS 8Mb Flash EEPROM with Phoenix ® BIOS
Мониторинг состояния
Вентилятор Eight 4-pin fans 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Support for 3-pins Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Индикатор CPU / System Overheat LED Suspend-state Indicator LED +5V Standby alert LED
Процессор Monitors for CPU Cores,+1.8V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
Температура Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
Другие особенности Chassis Intrusion Detection Chassis Intrusion Header SDDC Support
Охлаждение системы
Вентиляторы 2x 8cm Hot-swappable PWM Cooling Fans 1x 9cm Hot-Swappable Rear Exhaust PWM Fan 2x Active heatsink w/ heatpipe
Отсеки для дисков
Hot-swap 8x SAS Hot-swap Drives
Периферийные отсеки (поворачиваются на 90 градусов) 2x 5.25\" Peripheral Drive Bay 1x 5.25\" Bay For Floppy Drive
Периферийные диски
Floppy Panasonic 3.5\" 1.44MB Floppy Drive
Электропитание
+12V 70 Amp
+3.3V 30 Amp
+5V 30 Amp
+5V режим ожидания 6.5 Amp
-12V 1 Amp
865W AC power supply w/ PFC
Напряжение питания 100 - 240V, 50-60Hz, 12-6 Amp
Сертификация 80 PLUS Certified
Режимы эксплуатации / соместимость
Характеристики окружающей среды Operating Temperature: 10° to 35°C (50° to 95°F) Non-operating Temperature: -40° to 70°C (-40° to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)
RoHS
RoHS Compliant 6/6, Pb Free
|
|||||||||
|
