Supermicro 7045A-8 / 7045A-8B
Супер сервер Supermicro 7045A-8 / 7045A-8B
Раздел: Supermicro Tower 4U
|

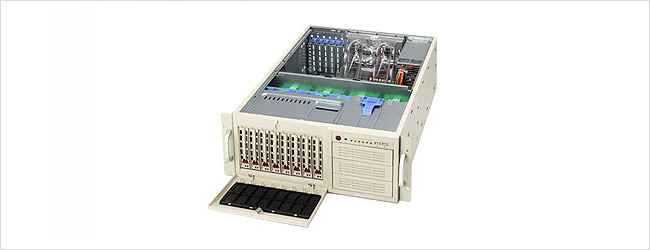

Supermicro 7045A-8 / 7045A-8B
|
||||||||||
|
|||||||||
|
Характеристики |
|||||||||
|
Материнская плата
Super X7DA8
Процессор / Кэш
Программное обеспечение ОС Supports 64-bit Operating Systems Supports 32-bit Operating Systems
Процессор Dual 771-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same
type below: Quad-Core Intel®
Xeon®Processor
5400/5300 sequence
(Harpertown
/Clovertown processor)
up to 3.16 GHz Dual-Core Intel®
Xeon®Processor 5200/5100/5000
sequence (Wolfdale
/Woodcrest/Dempsey processor) up to 3.40 GHz NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
Системная шина 1333 / 1066 / 667 MHz system bus
Память
Размеры DIMM 512 MB, 1GB, 2GB, 4GB
Обнаружение ошибок Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Напряжение питания памяти 1.8V only 1.5V(AMB)
Объём памяти Eight 240-pin DIMM sockets Supports up to 32 GB 667/533MHz DDR2 FB-DIMM memory Dual branch memory bus Memory must be populated in pairs
Тип памяти 667/533MHz FB-DIMM (Fully Buffered DIMM) DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
Интегрированные устройства
Генератор тактовых импульсов CK410B chip
IPMI Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (SIMLP) (Optional: AOC-SIMLP-B) (Optional: AOC-SIMLP-3) with 3rd LAN support
Сетевые платы Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
RAID Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-LPZCR1 or AOC-LPZCR2 SCSI RAID 0, 1, 5, 10 Optional: (Card NOT included)
SATA Intel ESB2 SATAII Controller RAID 0, 1, 5, 10 support
SCSI Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI Host RAID 0, 1, 10 support (only for 4 drives)
Super I/O Winbond 83627G chip
Чипсет Intel® 5000X (GreenCreek) chipset MCH + PXH-V + ESB2
Порты ввода/вывода
Аудио AC97 Audio
Клавиатура/Мышь PS/2 keyboard and mouse ports
Floppy 1 Floppy controller; 1.44 MB, 2.88 MB
Параллельный порт 1 ECP / EEP parallel port
IDE Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card Supports UDMA Mode 5, PIO Mode 4, and ATA/100 Compact Flash (40-pin connector, IDE 1, single channel) slot
LAN 2x RJ45 LAN port
Serial ATA Six Serial ATA ports Six SATA hard drives supported
Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header
USB 4x USB rear ports 1x USB internal header 6 total USB ports, 2.0 Compliant / 1.1 Compliant
Корпус
Модель SC743S1-645
Форм Фактор 4U Rackmountable / Tower Optional Rackmount Kit (CSE-PT26)
Размеры
Глубина 648мм (25.5")
Высота 178мм (7.0")
Вес Брутто 28.6кг (63 lbs)
Доступные цвета Бежевый, Чёрный
Ширина 437мм (17.2")
Передняя панель
Кнопки Power On/Off button System Reset button
Индикаторы Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Power Fail LED
Порты 2x USB Ports
Слоты расширения
PCI 1x 32-bit 33MHz PCI (5V) slot
PCI-Express 1 (x16) PCI-e slot 1 (x4) PCI-e (using x16) slot
PCI-X 2x 64-bit 133/100MHz PCI-X (3.3V) slots 1x 64-bit 100MHz PCI-X (3.3V) slot
Системный BIOS
Особенности BIOS Plug and Play (PnP) SMBIOS 2.3 DMI 2.1 PCI 2.2 ACPI 1.0 PCI-X 1.0 USB Keyboard support Hardware BIOS Virus protection
Тип BIOS 8Mb Flash EEPROM with Phoenix® BIOS
Мониторинг состояния
Вентилятор Total of eight 4-pin fans 8x fans with status monitoring Status monitor for speed control Support 3-pin fans Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Индикатор CPU / System Overheat LED
Процессор Monitors for CPU Cores, +1.8V, +3.3V, +5V, -12V & +3.3V Standby CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
Температура Monitoring for CPU and chassis, environment CPU thermal trip support PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support
Другие особенности Chassis intrusion detection Chassis intrusion header
Охлаждение системы
Вентиляторы 4x 5000 RPM Hot-swappable PWM Cooling Fans 1x 4000 RPM Hot-Swappable Rear Exhaust PWM Fan 1x Air Shroud
Отсеки для дисков
Hot-swap 8x 3.5\"SCA Ultra320/160 Hot-swap Drives
Периферийные отсеки (поворачиваются на 90 градусов) 2x 5.25\" Peripheral Drive Bay 1x 5.25\" Bay For Floppy Drive
Периферийные диски
Floppy Panasonic 3.5\" 1.44MB Floppy Drive
SCSI Backplane
Single Channel SCSI Backplane w/ Enclosure Management (SAF-TE)
Электропитание
+12V 46.0 Amp
+3.3V 30.0 Amp
+5V 30.0 Amp
+5V режим ожидания 4.0 Amp
-12V 0.6 Amp
645W Low-Noise AC power supply with PFC
[ 24-pin, (4-pin, 8-pin) = 12V ]
DC выход 5V + 3.3V ≤ 160W
Напряжение питания 100 - 240V, 50 - 60Hz, 11 - 5Amp
Режимы эксплуатации / соместимость
Характеристики окружающей среды Рабочая температура: 10°to 35°C (50°to 95°F)
Температура хранения: -40°to 70°C (-40°to 158°F)
Рабочая влажность: 8% to 90% (без конденсата)
Влажность хранения: 5 to 95% (без конденсата)
|
|||||||||
|
