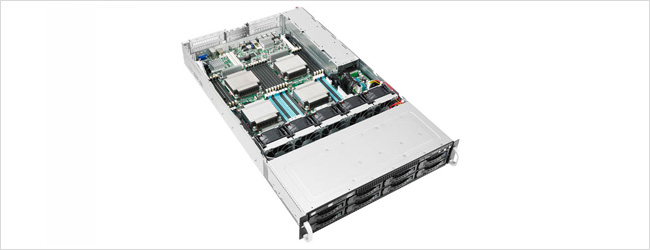

ASUS RS926-E7/RS8

Процессор / Системная шина 4 x Socket 2011
Intel® Xeon® processor E5-4600 product family (130W) Processor
Чипсeт Intel® C602-A PCH
Mellanox ConnectX-3 FDR
Оперативная память Total Slots : 32 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB RDIMM/Maximum up to 256GB UDIMM/Maximum up to 1024GB LRDIMM
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
Слоты расширения Full-length
4 * PCI-E x16 (2 * Gen3 x16 Link or 4 * Gen3 x8 Link)
Half-length/Low-profile
2 * PCI-E x8 (Gen3 x8 Link)
Хранилище данных SATA Controller : Intel® C602-A
x

2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
Корпус для жесткого диска 8 * Hot-swap 3.5" "HDD Bays
Сеть 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
1 x Single Port Mellanox ConnectX-3 FDR InfiniBand with QSFP interface
Графика Aspeed AST2300 with 16MB
Разъемы на плате 1 x External Serial Port
5 x RJ-45 ports (One for ASMB6-iKVM)
6 x USB 2.0 ports (Front x 2, Rear x 1)
2 x USB 3.0 ports
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 KB/MS port
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
CentOS 5.6 32/64-bit

*(Subject to change without any notice)
Windows® Server 2008 R2 Enterprise
RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
SuSE® Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
Администрирование default 1 x ASMB6-iKVM for KVM-over-IP
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
Размеры 750mm * 444mm * 88mm
Форм-фактор 2U
Вес 20Kg
Электропитание 1620W (80+) (Platinum level) 1+1 Redundant Power Supply (following different configuration by region)
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x RS920-E7 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASWM ENTERPRISE DVD
1 x RS920-E7 Support DVD
1 x ASMB6 SERIES DVD
1 x ASMB6 User's Guide
Опционально Second 1620W Redundant Power Supply Module (04G180001700)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part ListChassis ASUS R21C 2U Rackmount Chassis
Материнская плата ASUS Z9PX-Q32 Server board
Бекплайн для жестких дисков 1 x RS920-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02)
Передняя панель 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
Система питания 1 x Power Distribution Board (60SC0200-SC0A01)
1 x Power Distribution Extension Board (60SC0210-SC0A01)
Midplane/Connection Board/Convert Board 1 x Power Sharing Board (08003-00220100)
Riser Card 3 x PCI-E Riser Card
Процессорный радиатор/ кулер 4 x CPU Heatsink (13071-00090600)
Блок питaния 2 x 1620W Redundant Power Supply (04G180001700)
Салазки для жесткого диска 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Вентилятор 5 x System Fans(80mm x 38mm) (13070-00230000)
Оптический привод 1 x Slim DVD-RW (Optional) (17G14113400N)
(DVD-RW default for North America)
Mounting Rails 1 x Friction rail kit (13GS190AM042-1)
Кабель 1 x W.H CABLE HSG 8P TO 8P (14003-00090100)
1 x W.H CABLE HSG 8P TO 8P (14003-00090200)
1 x PMBUS CABLE 6P TO 6P (14G000611220)
2 x W.H CABLE 10P TO 8P,L=700mm (14G030028210)
2 x SATA 6G CABLE L=900+800+700*2 (14001-00280000)
1 x USB CABLE 2*4 TO 2*5,L=850mm (14001-00300000)
1 x MINI SATA 13P TO 7P+4P,L=800mm (14001-00240000)
1 x POWER 8P TO TERMINAL, L=80mm (14001-00190100)
1 x POWER 24P TO TERMINAL, L=80mm (14001-00180000)
1 x FPB CBL 2*8 TO 2*10,L=730mm(14003-00100000)
1 x POWER 8P TO TERMINAL, L:200MM (14001-00190000)
2 x W.H CABLE 10P TO 8P,L=700MM (14G030028210)
1 x W.H CABLE 6P TO 6P,L= 550MM (14G03001120C)
