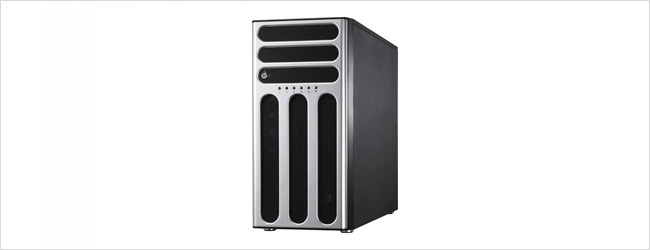

ASUS TS300-E7/PS4

Процессор / Системная шина 1 x Socket LGA1155
Intel® Xeon® E3-1200 Processor Family
Intel® Xeon® E3-1200 v2 Processor Family
Intel® Core™ i3-2100 Processor Family
Intel® Pentium™ G8x0/G6x0
Intel® Celeron™ G5x0/G4x0 Processor

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® C204 Chipset
Оперативная память Total Slots : 4 (2 Channels)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
Dual Channel, DDR3, 1066/1333/1600, UDIMM, with ECC*1
Memory Size :
1GB, 2GB, 4GB, 8GB UDIMM
Слоты расширения 1 x PCI-E x16 (Gen3 x16/8 Link)---- (Flex-E)
1 x PCI-E x16 (Gen3 x8 Link)
1 x PCI-E x8 (Gen3 x4 Link)
3 x PCI 32/33 5V

* Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor

Хранилище данных SATA Controller : Intel® C204
x

2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
Корпус для жесткого диска 4 * Hot-swap 3.5" SAS Gen2 /SATA2 HDD Bays
Auxiliary Storage FDD/CD/DVD 3 * 5.25" media bays
(Options: No Device / DVD-RW)
(DVD-RW default for North America)
Сеть 4 x Intel® 82574L + 1 x Mgmt LAN
Графика Aspeed AST2050 with 16MB
Разъемы на плате 5 x RJ-45 ports (One for ASMB4-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x External Serial Port
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
SuSE® Linux Enterprise Server 10 32/64-bit

*(Subject to change without any notice)
RedHat® Enterprise Linux AS5.5 32/64-bit
SuSE® Linux Enterprise Server 11 32/64-bit
Администрирование ASWM Enterprise 2.0
Optional ASMB5-iKVM for KVM-over-IP support
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Размеры 445mm x 217.5mm x 545mm
Вес 20Kg
Электропитание 500W 80PLUS Bronze Single Power Supply
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x TS300-E7 User's Guide
1 x ASUS Auto Installation Guide
1 x Bag of Screws
1 x AC Power Cable
1 x ASUS Auto Installation DVD (15091-06620000)
1 x TS300-E7 Support DVD (15091-06600200)
1 x ASWM ENTERPRISE DVD (15091-02400000 )
Опционально ASMB5-iKVM Remote management card (61-C1SEK0-01)
DVD-RW (17G141147005)
(DVD-RW default for North America)
HDD Cage Kit (90-S000H6390T)
ASUS TS300-E7 Rackmount Ball Bearing Rail Kit (13GS0K00M040 + 13GS170AM040-1)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
Примечание *1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor

Part ListМатеринская плата ASUS P8B-E/4L Server board (60SB0070-MB0A17)
Бекплайн для жестких дисков 1 x SAS/SATA Backplane (BP4LX-TRS8) (80-C1SDI0-00B02)
Передняя панель 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01)
Процессорный радиатор/ кулер 1 x CPU Heatsink (13G074157020)
Блок питaния 1 x 500W Single Power Supply (04G180001600)
Салазки для жесткого диска 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Вентилятор 1 x System Rear Fan (120mm x 38mm) (13G074158010)
Оптический привод 1 x DVD-RW (Optional) (17G141147005)
(DVD-RW default for North America)
Кабель 1 x SATA 7Pin, L=500mm (14G000100101)
2 x SATA 7Pin TO 7Pin, L=500mm (14G000130233)
1 x USB CABLE 10Pin TO 10Pin, L=350mm (14G143083000)
1 x W.H CABLE 10Pin TO 8Pin, L=700mm (14G030028210)
1 x W.H CABLE 6Pin TO 6Pin, L=550mm (14G03001120C)
1 x COM1 CABLE 9P,L=260mm (14G00002009H)
