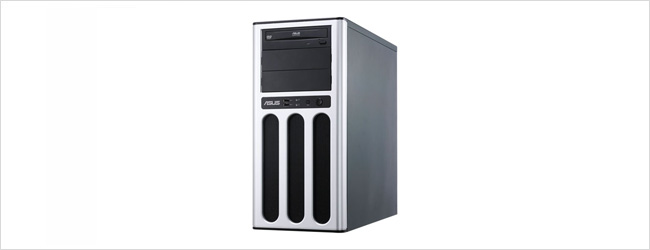

ASUS TS100-E7/PI4

Процессор / Системная шина 1 x Socket LGA1155
Intel® Xeon® E3-1200 Processor Family
Intel® Xeon® E3-1200 v2 Processor Family
Intel® Core™ i3-2100 Processor Family
Intel® Pentium™ G8x0/G6x0
Intel® Celeron™ G5x0/G4x0 Processor

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® C202 Chipset
Оперативная память Total Slots : 4 (2 Channels)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
Dual Channel, DDR3, 1066/1333/1600, UDIMM, with ECC*1
Memory Size :
1GB, 2GB, 4GB, 8GB UDIMM
Слоты расширения 1 * PCI-E x16 (Gen3 x16 Link)
1 * PCI-E x8 (Gen2 x4 Link)
2 * PCI-E x1 (Gen2 x1 Link)
2 x PCI 32/33 5V

* Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor

Хранилище данных SATA Controller : Intel® C202
x

6 x SATA2 300MB/s ports
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
Корпус для жесткого диска 4 * Internal 3.5" SATA2 HDD Bays
Auxiliary Storage FDD/CD/DVD 3 * 5.25" media bays
(Options: No Device / DVD-RW)
(DVD-RW default for North America)
Сеть 2 x Intel® 82574L
Графика XGI® Z9s with 64MB
Разъемы на плате 1 x External Serial Port
2 x RJ-45 ports
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
SuSE® Linux Enterprise Server 10 32/64-bit
RedHat® Enterprise Linux AS5.5 32/64-bit
SuSE® Linux Enterprise Server 11 32/64-bit
Администрирование ASWM Enterprise 2.0
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Размеры 436.8mm x 200mm x 478.8mm
Вес 15Kg
Электропитание 300W 80PLUS Single Power Supply
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x TS100-E7 User's Guide
1 x ASUS Auto Installation Guide
1 x Bag of Screws
1 x AC Power Cable
1 x ASUS Auto Installation DVD (15091-06620000)
1 x TS100-E7 Support DVD (15091-06600200)
1 x ASWM ENTERPRISE DVD (15091-02400000 )
Опционально DVD-RW (17G141147005)
(1 x DVD-RW default for North America)
Примечание *1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor

Part ListМатеринская плата ASUS P8B-X/MR Server board (60SB0080-MB0A07)
USB-кард 1 x USB Board (USB-R9) (60SC0090-SC0A03)
Процессорный радиатор/ кулер 1 x CPU Heatsink (13G074157020)
Блок питaния 1 x 300W Single Power Supply (04G1850151B0)
Вентилятор 1 x System Ball Fan (120mm x 25mm) (13G074166000)
Оптический привод 1 x DVD-RW (Optional) (17G141147005)
(DVD-RW default for North America)
Кабель 4 x SATA CABLE 7P RED,L=420mm (14G000107085)
1 x SATA CABLE 7P 90-180,L=500mm (14G000100101)
1 x WIRE CABLE USB 10P TO 10P (14G143083000)
