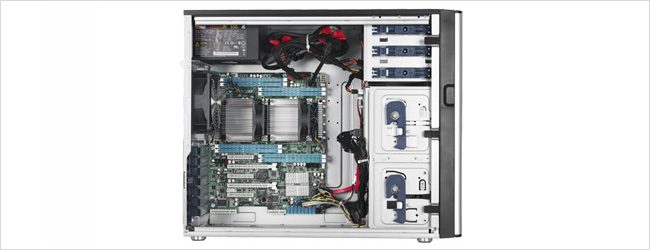

ASUS TS700-X7/PS4

Процессор / Системная шина 2 x Socket 2011
Intel® Xeon® processor E5-2600 product family (115W) Processor
QPI 6.4 / 7.2 / 8.0 GT/s

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® C602-A PCH
Оперативная память Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU)
Capacity : Maximum up to 256GB RDIMM/Maximum up to 256GB LRDIMM/Maximum up to 64GB UDIMM
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333/1600, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
2GB, 4GB, 8GB, 16GB, 32GB RDIMM
2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
Слоты расширения Full-Height Full-Length
2 * PCI-E x16 (x8 Gen3 Link)+
2 * PCI-E x8 (x8 Gen3 Link); MIO supported+
1 * PCI-E x8 (x4 Gen2 Link)
or
2 * PCI-E x16 (x16 Gen3 Link)+
1 * PCI-E x8 (x4 Gen2 Link)
Additional Slot: 1* PIKE Slot for Stroage Enhancement
Хранилище данных SATA Controller : Intel® C602-A AHCI
x

2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
Корпус для жесткого диска 4 * Hot-swap 3.5" "HDD Bays
Auxiliary Storage FDD/CD/DVD 3 * 5.25" media bays
(Options: No Device / DVD-RW)
(DVD-RW default for North America)
Сеть 2 x Intel® 82574L + 1 x Mgmt LAN
Графика Aspeed AST2300 with 16MB
Разъемы на плате 1 x External Serial Port
3 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
2 x USB 3.0 ports
1 x VGA port
1 x PS/2 mouse port
Поддержка ОС CentOS 5.8/6.2 64-bit
Windows® Server 2008 Enterprise 32/64-bit

*(Subject to change without any notice)
Windows® Server 2008 R2 Enterprise
Windows® Server 2012
RedHat® Enterprise Linux AS5.8/6.3 64-bit
SuSE® Linux Enterprise Server 11.2 32/64-bit
Администрирование ASWM Enterprise
Default ASMB6-iKVM for KVM-over-IP
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Размеры 445mm * 217.5mm * 545mm
Форм-фактор 5U/Tower
Вес 17Kg
Электропитание 500W 80 PLUS Bronze Single Power Supply

100-240Vac, 10-6A, 50-60Hz
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x TS700-X7 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASWM ENTERPRISE DVD
1 x TS700-X7 Support DVD
1 x ASMB6 SERIES DVD
1 x ASMB6 User's Guide
Опционально DVD-RW (17600-00010000)
(DVD-RW default for North America)
ASUS TS700-X7 Ball Bearing Rail Kit
(13GS0K00M040 + 13GS170AM040-1)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part ListChassis ASUS T50A 5U Pedestal Chassis
Материнская плата ASUS Z9PA-D8 Server board
Бекплайн для жестких дисков 1 x SAS/SATA Backplane (BP4LX-TRS8) (80-C1SDI0-00B02)
Передняя панель 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01)
Процессорный радиатор/ кулер 2 x CPU Heatsink (13071-00090800)
Блок питaния 1 x 500W Single Power Supply (0A100-00140200)
Салазки для жесткого диска 4 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1)
Вентилятор 3 x System Fans (80mm x 38mm) (13G074186020)
Оптический привод 1 x DVD-RW (Optional) (17600-00010000)
(DVD-RW default for North America)
Кабель 1 x SATA 7Pin, L=500mm (14G000100101)
2 x SATA 7Pin TO 7Pin, L=500mm (14G000130233)
1 x USB CABLE 10Pin TO 10Pin, L=350mm (14G143083000)
1 x W.H CABLE 10Pin TO 8Pin, L=700mm (14G030028210)
1 x W.H CABLE 6Pin TO 6Pin, L=550mm (14G03001120C)
4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552)
