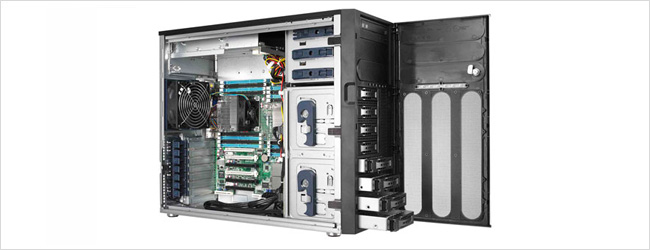

ASUS TS700-E7/RS8

Процессор / Системная шина 2 x Socket 2011
Intel® Xeon® processor E5-2600 Series (115W/130W/135W/150W) *1 Processor
*Please refer to overview for details
Чипсeт Intel® C602-A PCH
Оперативная память Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 128GB UDIMM
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
Слоты расширения 4* PCI-E x16 (Gen3 x16 Link) + 1*PCI-E x16 (Gen3 x8 Link)
Or
3* PCI-E x16 (Gen3 x16 Link) + 3*PCI-E x16 (Gen3 x8 Link)
Хранилище данных SATA Controller : 2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
Корпус для жесткого диска 8 * Hot-swap 3.5" "HDD Bays
Сеть 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
Графика Aspeed AST2300 with 16MB
Разъемы на плате 5 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
CentOS 5.6 32/64-bit

*(Subject to change without any notice)
RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
SuSE® Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
Администрирование default 1 x ASMB6-iKVM for KVM-over-IP
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
China (CCC)
Размеры 445mm * 217.5mm * 545mm
Форм-фактор 5U/Tower
Вес 20Kg
Электропитание 800W (80+) (Gold level) 1+1 Redundant Power Supply (following different configuration by region)
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x TS700-E7 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASWM ENTERPRISE DVD
1 x TS700-E7 Support DVD
1 x ASMB6 SERIES DVD (15091-01H00000)
1 x ASMB6 User's Guide (15060-01U00000)
Опционально DVD-RW (17G141147005)
(DVD-RW default for North America)
Second 800W Redundant Power Supply Module
ASUS TS700-E7 Ball Bearing Rail Kit
(13GS0K00M040 + 13GS170AM040-1)
Heatsink for CPU 135W upgrade kit (13071-00090100)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
Примечание *1 >115W support with optional thermal upgrade kit

Part ListChassis ASUS T50A 5U Pedestal Chassis
Материнская плата ASUS Z9PE-D16 Server board
Бекплайн для жестких дисков 1 x TS700-E7/RS8 SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02)
1 x TS700-E7/RS8 SAS/SATA Backplane (BP4LX-TRS8/S) (60SC0250-SC0B02)
Передняя панель 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01)
Система питания 1 x Redundant Power Supply Power Distribution Board
(PDB-T50A)
Процессорный радиатор/ кулер 2 x CPU Heatsink (13071-00090800)
Блок питaния 1 x 800W Redundant Power Supply (0A100-00080100)
(2 x Power Supply Module default for North America)
Салазки для жесткого диска 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
HDD Cage 2 x HDD Cage (13GS170AM010-1)
Вентилятор 3 x System Fans (80mm x 38mm) (13G074186020)
1 x System Rear Fan (120mm x 38mm)(13G074186010)
Крепеж для вентилятора 3 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
Air Duct/Mylar 1 x Air Duct (13GS1700P180-1)
Оптический привод 1 x DVD-RW (Optional) (17G141147005)
(DVD-RW default for North America)
Кабель 1 x PMBUS CABLE 5P TO 5P L=500mm (14G000611200)
1 x USB CABLE 2*4 TO 2*5,L=850mm (14G000509430)
1 x POWER CABLE 8P TO 8P,L=70mm (14G000610110)
2 x POWER CABLE 8P TO 8P,L=420mm (14G000610120)
1 x POWER CABLE 24P TO 24P,L=460mm (14G000603750)
4 x SATA 7P*2 TO 7P*2,L=400mm (14G000128040)
4 x W.H CABLE 4P TO 4P, L=150mm (14G030011552)
1 x FPB CBL 2*8 TO 2*10+1*L=6,950mm (14003-00110000)
