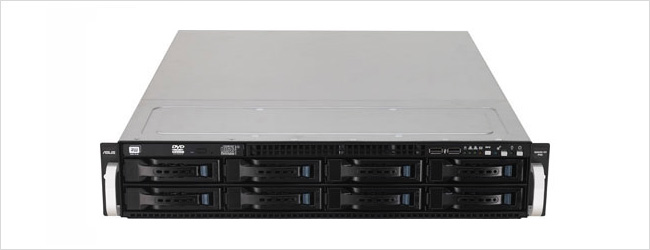

ASUS ESC4000/IB

Processor / System Bus 2 x Socket LGA1366
Six-Core/Quad-Core Intel® Xeon® X5600 Series (130W)
Six-Core/Quad-Core Intel® Xeon® X5600/X5500 Series (95W)
Quad-Core Intel® Xeon® E5600/E5500 Series (80W)
Quad-Core Intel® Xeon® L5600/L5500 Series (60W/40W/38W)
QPI 4.8 / 5.86 / 6.4 GT/s
Core Logic Intel® 5520 IOH
NVIDIA NF200
Mellanox ConnectX MT25418 QDR 40Gbps controller
Memory Total Slots : 18 (3-channel per CPU, 9 DIMM per CPU)
Capacity : Maximum up to 192GB RDIMM/Maximum up to 48GB UDIMM
Memory Type :

Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB RDIMM
1GB, 2GB, 4GB UDIMM
Expansion Slots Total Slot : 9
Slot Type:
Workstation Mode :
4 x PCI-E x16 (Gen2 X16 Link) (Full-Height/Full-Length)
1 x PCI-E x16 (Gen1 X4 Link) (Low-Profile/Half-Length)
Server Mode :
8 x PCI-E x16 (Gen2 X8 Link) (Full-Height/Full-Length)
1 x PCI-E x16 (Gen1 X4 Link) (Low-Profile/Half-Length)
Storage SATA Controller :
Intel® ICH10R
SAS Controller :
ASUS PIKE 1068E 8-port SAS RAID card (Optional)
ASUS PIKE 6480 8-port SAS RAID card(Optional)
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
HDD Bays
Auxiliary Storage FDD/CD/DVD 1*Slim-type Optical Device Bay;
Options:No Device/DVD-RW
(DVD-RW default for North America)
Networking 2 x Intel® 82574L + 1 x Mgmt LAN
Graphic Aspeed AST2050 with 8MB VRAM
Aspeed AST2050 with 8MB VRAM
CUDA Core Support up to four NVIDIA® Tesla™ M2050/M2070/M2090 GPUs
On Board I/O 1 x External Serial Port
3 x RJ-45 ports (One for ASMB4-iKVM)
4 x USB 2.0 ports
1 x VGA port
1 x Internal A Type USB Port
1 x QSFP Port
OS Support Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
RedHat® Enterprise Linux AS5.5 32/64-bit
SuSE® Linux Enterprise Server 11 32/64-bit

*(Subject to change without any notice)
Management Solution ASWM Enterprise 2.0;
ASMB4-iKVM for KVM-over-IP support(bundled)
Safety Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Taiwan (BSMI)
Dimensions 750mm x 444mm x 88mm
Form Factor 2U
Weight 18kg
Power Supply 1+1 Redundant 1620W 80PLUS Platinum Power Supply;
1000W: 100-120Vac, 12-10A;
1200W: 120-140Vac, 12-10A;
1620W: 180-240Vac, 10.5-8A
Environment Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x ESC4000 User's Guide
1 x ASUS ASWM Enterprise User's Guide (15060-01800000)
1 x Bag of Screws
2 x AC Power Cable
1 x ESC4000 Support DVD
1 x ASWM ENTERPRISE SDVD (15091-02400000 )
1 x ASMB4 User's Guide
1 x ASMB4 Support DVD
Optional Items Second 16200W Redundant Power Supply Module (04G180001700)
Heatsink for CPU 130W upgrade kit (13071-00090100)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part ListMB ASUS Z8PG-D18/QDR Server board
HDD Backplane 1 x ESC4000 SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02)
Front Panel Board 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
Power Distribution Board 1 x Redundant Power Supply Power Distribution Board (PDB-R21B) (60SC0100-SC0A01)
Riser Card 1 x Left ESC4000 4*PCI-E x16 Riser card (RE16LX4-R21B) (60SC00Z0-SC0A01)
1 x Right ESC4000 4*PCI-E x16 Riser card (RE16RX4-R21B) (60SC00Y0-SC0A02)
1 x PCI-E Low-profile Riser card (RE16R-R12B) (60SC01D0-SC0B01)
1 x PIKE Riser card (RE16R-R21B-PIKE) (60SC0110-SC0A01)
CPU Heatsink/ Cooler 2 x CPU Heatsink (13G074144002)
Power Supply Unit 1 x 1620W Redundant Power Supply (04G180001700)
(1 x Power Supply Module default for North America)
HDD Tray 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Fan 5 x System Fans (80mm x 38mm) (13G074187000)
Air Duct/Mylar 1 x MB Air Duct Mylar (13GS1K00L091-1)
4 x GPU Air Duct (13GS1K0AM050-1)
Optical Drive 1 x Slim DVD-RW (17G14113400N)
(DVD-RW default for North America)
Mounting Rails 1 x Friction rail kit (13GS190AM042-1)
Cable 1 x PMBUS CABLE 5P TO 5P L:140MM (14G000611201)
1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303)
1 x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210)
1 x POWER CABLE 8P TO 6+2P,L=300MM (14G000610160)
2 x W.H CABLE 10P TO 8P,L=1050MM (14G030028230)
1 x W.H CABLE 6P TO 6P,L=900MM (14G03001120E)
1 x SATA CABLE 7P*2 TO 7P*2,L850MM (14G000130810)
3 x SATA CABLE 7P*2 TO 7P*2,L=1M (14G000130811)
