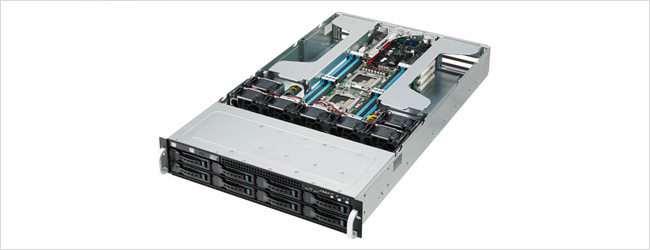

ASUS ESC4000/FDR G2

Процессор / Системная шина 2 x Socket 2011
Intel® Xeon® processor E5-2600 product family (135W) Processor
QPI 6.4 / 7.2 / 8.0 GT/s

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® C602-A PCH
Mellanox ConnectX-3 FDR
Оперативная память Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 128GB UDIMM
Memory Type :
Quad Channel, DDR3, 800/1066/1333/1600, RDIMM
Quad Channel, DDR3, 1066/1333, UDIMM
Quad Channel, DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
Слоты расширения Total: 9
Full-length/Full-height
8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) (Slot CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied)

Half-lenth/Low-profile
1 * PCI-E 3.0 x16 (Gen3 x8 Link) (PIKE SAS Card for Storage Enhancement)
Хранилище данных SATA Controller : Intel® C602-A AHCI
x

2 x SATA3 6Gb/s ports
2 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
SATA Controller :
Intel® C602-A SCU
x

4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
Корпус для жесткого диска 8 * Hot-swap 3.5" HDD Bays
Auxiliary Storage FDD/CD/DVD 1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW
(DVD-RW default for North America)
Сеть 2 x Intel® 82574L + 1 x Mgmt LAN
1 x Single Port Mellanox ConnectX-3 FDR InfiniBand with QSFP interface
Графика Aspeed AST2300 with 16MB
Разъемы на плате 1 x External Serial Port
3 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x VGA port
1 x QSFP Port
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
CentOS 5.7/6.2 32/64-bit

*(Subject to change without any notice)
Windows® Server 2008 R2 Enterprise
RedHat® Enterprise Linux AS5.7/6.2 32/64-bit
SuSE® Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
Администрирование ASWM Enterprise
default 1 x ASMB6-iKVM for KVM-over-Internet
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
Размеры 750mm * 444mm * 87mm
Форм-фактор 2U
Вес 19kg
Электропитание 1+1 Redundant 1620W 80PLUS Platinum Power Supply;
1000W: 100-120Vac, 12-10A;
1200W: 120-140Vac, 12-10A;
1620W: 180-240Vac, 10.5-8A
(following different configuration by region as below)
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x ESC4000 G2 User's Guide
1 x Bag of Screws
1 x AC Power Cable
1 x ESC4000 G2 Support DVD
1 X ASWM Enterprise DVD
1 x ASMB6 Manual
1 x ASMB6 DVD
Опционально Second 16200W Redundant Power Supply Module (04G180001700)
Heatsink for CPU 135W upgrade kit (13071-00090600)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part ListМатеринская плата ASUS Z9PG-D16 Series Server board
Бекплайн для жестких дисков 1 x SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02)
Передняя панель 1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
Система питания 1 x Redundant Power Supply Power Distribution Board (PDB-R21B-G2) (61-C1SF40-01)
Riser Card 1 x Left 4 * PCIe Gen3 x16 slots Riser card (RE16LX4-R21B-G2 ) (61-C1SF50-01)
1 x Right 4 * PCIe Gen3 x16 slots Riser card (RE16RX4-R21B-G2 ) (61-C1SF60-01)
1 x PCI-E Low-profile Riser card (RE16R-R12B) (60SC01D0-SC0B01)
1 x PIKE Riser card (RE16R-R21B-PIKE) (60SC0110-SC0A01)
Процессорный радиатор/ кулер 2 x CPU Heatsink (13071-00090600)
Блок питaния 1 x 1620W Redundant Power Supply (04G180001700)
(2 x Power Supply Module default for North America)
Салазки для жесткого диска 8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
Вентилятор 7 x System Fans (80mm x 38mm) (13G074187000)
Air Duct/Mylar 1 x MB Air Duct Mylar (13GS1U00L030-1;13GS1U00T010-1)
4 x NVIDIA Tesla M20x0 series GPU Air Duct (13GS1K0AM050-1)
4 x NVIDIA Tesla K10/K20 series GPU Air Duct (13GS1U0AM020-1)
4 x Intel Xeon Phi series Co-processor Air Duct (13GS1U0AM050-1)
Оптический привод 1 x Slim DVD-RW (17G14113400N)
(DVD-RW default for North America)
Mounting Rails 1 x Friction rail kit (13GS190AM042-1)
Кабель 1 x PMBUS CABLE 5P TO 5P L:140MM (14G000611201)
1 x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303)
1 x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210)
4 x POWER CABLE 8P TO 6+2P,L=470MM (14001-00250000)(for GPU/Co-processor cards)
2 x W.H CABLE 10P TO 8P,L=1050MM (14G030028230)
1 x W.H CABLE 6P TO 6P,L=900MM (14G03001120E)
1 x SATA CABLE 7P*2 TO 7P*2,L850MM (14G000130810)
3 x SATA CABLE 7P*2 TO 7P*2,L=1M (14G000130811)
1 x FPB CBL 2*8 TO 2*10+1*6,750MM (14G030042840)
