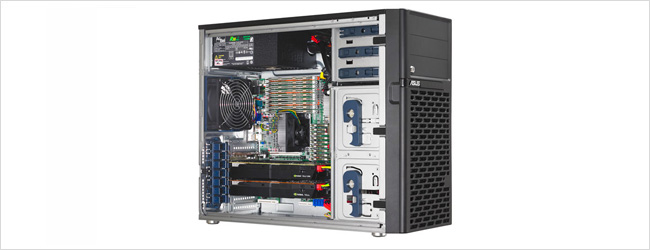

ASUS Extreme Super Computer ESC2000

Процессор / Системная шина 2 x Socket LGA1366
Six-Core/Quad-Core Intel® Xeon® X5600 Series (130W)
Six-Core/Quad-Core Intel® Xeon® X5600/X5500 Series (95W)
Quad-Core Intel® Xeon® E5600/E5500 Series (80W)
Quad-Core Intel® Xeon® L5600/L5500 Series (60W/40W/38W) Processor
QPI 4.8 / 5.86 / 6.4 GT/s

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® 5520 IOH
Intel® ICH10R I/O Controller
Оперативная память Total Slots : 18 (3-channel per CPU, 9 DIMM per CPU)
Capacity : Maximum up to 192GB RDIMM/Maximum up to 48GB UDIMM
Memory Type :
Triple Channel, DDR3, , RDIMM
Triple Channel, DDR3, , UDIMM, with ECC
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB RDIMM
1GB, 2GB, 4GB UDIMM
Слоты расширения Total Slot : 6
Slot Type:
Workstation Mode :
2 x PCI-E x16 (Gen2 X16 Link) (Full-Height/Full-Length)
Server Mode :
1 x PCI-E x16 (Gen2 X16 Link) (Full-Height/Full-Length)
2 x PCI-E x16 (Gen2 X8 Link) (Full-Height/Full-Length)
1 x PCI 32bit/ 33MHz ()
1 x PCI-E x8 (Gen1 X4 Link) (Full-Height/Full-Length)
Addditional Slot 1: 1* PIKE Slot for Stroage Enhancement
Additional Slot 2: 1 * MIO Slot for Audio
Хранилище данных SATA Controller : Intel® ICH10R
x

6 x SATA2 300MB/s ports
SAS Controller :
ASUS PIKE 1068E 8-port SAS RAID card (Optional)
ASUS PIKE 1078 8-port SAS HW RAID card (Optional)
ASUS PIKE 6480 8-port SAS RAID card(Optional)
ASUS PIKE 2008 8-port SAS 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
Корпус для жесткого диска 4 * Hot-swap 3.5" "HDD Bays
Auxiliary Storage FDD/CD/DVD 3 * 5.25" media bays
(Optional: No ODD/DVD-RM)
(DVD-RW default for North America)
Сеть 1 x Dual Port Intel® 82576EB(VMDq) + 1 x Mgmt LAN
Графика Aspeed AST2050 with 8MB
Поддержка технологий Multi-GPU Support ATI® CrossFireX™ technology, up to Dual CrossFireX
CUDA Core Up to 2 Tesla C2050/C2070
Разъемы на плате 1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x External Serial Port
1 x VGA port
3 x RJ-45 ports (One for ASMB4-iKVM)
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
RedHat® Enterprise Linux AS5.0 32/64-bit
SuSE® Linux Enterprise Server 10 32/64-bit

*(Subject to change without any notice)
Администрирование ASMB4-iKVM Remote Management Card
ASWM Enterprise 2.0
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
Размеры 545 mm x 217.5 mm x 445 mm
Вес 20kg
Электропитание 1100W 80PLUS Gold Single Power Supply
(following different configuration by region)
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x ESC2000 User's Guide
1 x ASUS ASWM Enterprise User's Guide (15060-01800000)
1 x Bag of Screws
1 x AC Power Cable
1 x ESC2000 Support DVD
1 x ASWM ENTERPRISE SDVD (15091-02400000 )
Опционально Cooler for CPU 130W upgrade kit (13G074186000)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)

Part ListМатеринская плата ASUS Z8PE-D18 Server board
Бекплайн для жестких дисков 1 x ESC2000 SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02)
Передняя панель 1 x Front I/O Board (FPB-TRS8A) (60SC00N0-SC0A01)
Процессорный радиатор/ кулер 2 x 130W CPU Cooler (13G074186000)
Блок питaния 1 x 1100W Single Power Supply (04G180001400)
Салазки для жесткого диска 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
HDD Cage 1 x T50C HDD Cage (13GS1H0AM010-1)
Вентилятор 2 x ESC2000 Front Fans (80mm x 38mm) (13G074186020)
1 x ESC2000 Rear Fan (120mm x 38mm) (13G074186010)
Крепеж для вентилятора 2 x Front Fan Holder (13GS1600P040-1)
Оптический привод 1 x DVD-RW (17G141147005)
(DVD-RW default for North America)
Mounting Rails 1 x Rail-Kit for Tower (13GS0K00M040)
Кабель 4 x SATA CABLE 7P RED,L:420MM W/KR (14G000107085)
1 x SATA 7Pin TO 7Pin, L=500mm (14G000100101)
1 x USB CABLE 10Pin TO 10Pin, L=350mm (14G143083000)
1 x POWER CABLE 8P TO 6+2P,L=300MM (14G000610160)
1 x W.H CABLE 10Pin TO 8Pin, L=700mm (14G030028210)
1 x W.H CABLE 6Pin TO 6Pin, L=550mm (14G03001120C)
