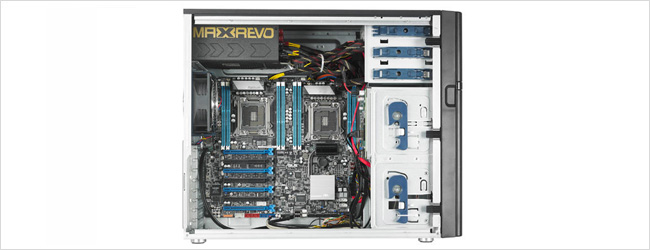

ASUS ESC2000 G2

Процессор / Системная шина 2 x Socket 2011
Intel® Xeon® processor E5-2600 Series (150W) Processor
QPI 6.4 / 7.2 / 8.0 GT/s

*Refer to www.asus.com for CPU Support list
Чипсeт Intel® C602-A PCH
Оперативная память Total Slots : 8 (4-channel)
Capacity : Maximum up to 256GB RDIMM/Maximum up to 64GB UDIMM
Memory Type :
Quad Channel, DDR3, , UDIMM, non ECC
Quad Channel, DDR3, , UDIMM, with ECC
Quad Channel, DDR3, , RDIMM
Слоты расширения Total: 7
Full-length/Full-height
4 x PCI-E 3.0 x16 slots (Dual@x16/x16; Quad@x8/x8/x8/x8)
2 x PCI-E 3.0 x16 slots (@x16 speed)
1 x PCI-E 3.0 x16 slot (@x8 speed)
Хранилище данных SATA Controller : Intel® C602-A AHCI
x

2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (for Linux/Windows)
(Support Software RAID 0, 1, 10 )
SATA Controller :
Intel® C602-A SCU
x

4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SATA Controller :
Marvell 88SE9230
4 x SATA3 6Gb/s ports
Marvell® RAID Utility (For Windows Only)
(Support Software RAID 0, 1, 10)
Корпус для жесткого диска 4 * Hot-swap 3.5" HDD Bays
Auxiliary Storage FDD/CD/DVD 3 * 5.25" media bays
(Optional: No ODD/DVD-RW)
(DVD-RW default for North America)
Сеть 2 x Intel® 82574L
Графика Aspeed AST2300 with 16MB
Поддержка технологий Multi-GPU Support ATI® CrossFireX™ technology, up to Quad CrossFireX
Supports NVIDIA® 4-Way Geforce SLI™ technology
Разъемы на плате 1 x PS/2 KB/MS port
2 x USB 3.0 ports
6 x USB 2.0 ports
2 x RJ-45 ports
1 x S/PDIF Out (Optical)
1 x 8-channel Audio I/O
Поддержка ОС Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
CentOS 5.7/6.1 32/64-bit

*(Subject to change without any notice)
Windows® Server 2008 R2 Enterprise
Windows® 7 32/64-bit
RedHat® Enterprise Linux AS5.7/6.2 32/64-bit
RedHat® Enterprise Linux Desktop WS 6.2
SuSE® Linux Enterprise Server 11.2 32/64-bit
SuSE® Linux Enterprise Desktop 11.1 32/64-bit
VMWare ESX4.1/ESXi4.1
Администрирование ASWM Enterprise
optional 1 x ASMB6-iKVM for KVM-over-Internet
Безопасность Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
Размеры 445mm * 217.5mm * 545mm
Форм-фактор 5U/Tower
Вес 17.2kg
Электропитание 1350W 80+ Gold Single Power Supply (following different configuration by region)
Экология Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x ESC2000 G2 User's Guide
1 x Bag of Screws
1 x AC Power Cable
1 x ESC2000 G2 Support DVD
1 X AWSM Enterprise DVD
1 x ASWM Enterprise Manual
1 x VGA Bracket
2 x COM port Cable
Опционально DVD-RW (17G141147005)
(DVD-RW default for North America)
ASUS ESC2000 G2 Ball Bearing Rail Kit
(13GS0K00M040 + 13GS170AM040-1)
Cooler for CPU 150W upgrade kit (13G070795020)
Front Fan (80mm x 25mm) (13G074186020)

Part ListМатеринская плата ASUS Z9PE-D8 WS Workstation board
Бекплайн для жестких дисков 1 x SAS/SATA Backplane (BP4LX-TRS8) (60SC00M0-SC0B02)
Передняя панель 1 x Front I/O Board (FPB-TRS8A) (61-C1SDJ1-01)
Процессорный радиатор/ кулер 2 x 150W CPU Cooler (13G070795020)
Блок питaния 1 x 1350W Single Power Supply (0A100-00090100)
Салазки для жесткого диска 4 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
HDD Cage 1 x T50C HDD Cage (13GS1H0AM010-1)
Вентилятор 1 x Rear Fan (120mm x 38mm) (13G074158010)
Крепеж для вентилятора 3 x Front Fan Holder (13GS1600P040-1)
Оптический привод 1 x DVD-RW (Optional)(17G141147005)
(DVD-RW default for North America)
Кабель 2 x SATA 6G CABLE 7P G/F BLA 500MM (14G000130233)
1 x SATA 7Pin TO 7Pin, L=500mm (14G000100101)
1 x W.H CABLE 6P TO 6P,L= 550MM(14G03001120C )
1 x WIRE CABLE USB 10P TO 10P ,L=500(14G143083100)
1 x USB3.0 CABLE HSG TO HSG L=600 (14001-000800DP)
1 x AUDIO CABLE 2*5P TO 2*5P HSG (14G143086002)
1 x FAN CABLE 4P/M TO 4P/F, L100MM (14G000015410)
