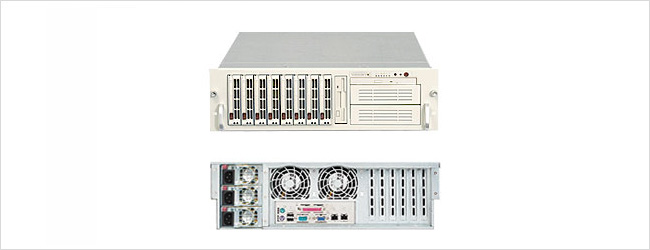

Supermicro 6035B-8R / 6035B-8RB
Супер сервер Supermicro 6035B-8R / 6035B-8RB
Раздел: Supermicro 3U Rackmount
|
Supermicro 6035B-8R / 6035B-8RB
|
||||||||||
|
|||||||||
|
Характеристики |
|||||||||
|
Материнская плата
Super X7DB8
Процессор / Кэш
Программное обеспечение ОС Supports 64-bit Operating Systems Supports 32-bit Operating Systems
Процессор Dual 771-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same
type below: Quad-Core Intel®
Xeon®Processor
5400/5300 sequence
(Harpertown
/Clovertown processor)
up to 3.16 GHz Dual-Core Intel®
Xeon®Processor 5200/5100/5000
sequence (Wolfdale
/Woodcrest/Dempsey processor) up to 3.40 GHz NOTE: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
Системная шина 1333 / 1066 / 667 MHz system bus
Память
Размеры DIMM 512 MB, 1GB, 2GB, 4GB
Обнаружение ошибок Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Напряжение питания памяти 1.8V only 1.5V(AMB)
Объём памяти Eight 240-pin DIMM sockets Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs
Тип памяти 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
Интегрированные устройства
Видеокарта ATI ES1000 controller with 16 MB of video memory
IPMI Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (Optional: AOC-SIMLC)
Сетевые платы Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking
RAID Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-LPZCR1 or AOC-LPZCR2 Optional: (Card not included) RAID 0, 1, 5, 10
SATA Intel ESB2 SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support
SCSI Adaptec AIC-7902 Controller Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives) Host RAID 0, 1, & 10 support
Super I/O Winbond 83627HG chip
Чипсет Intel® 5000P (Blackford) chipset MCH + PXH + ESB2
Порты ввода/вывода
Клавиатура/Мышь PS/2 keyboard and mouse ports
Floppy 1 Floppy controller; 1.44 MB, 2.88 MB
Параллельный порт 1 ECP / EEP parallel port
IDE Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card Compact Flash (40-pin connector, IDE 1, single channel) slot Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN 2x RJ45 LAN port
Serial ATA Six Serial ATA ports Six SATA hard drives supported
Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header
USB 2x USB rear ports 3x USB internal headers Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA 1x VGA Port
Корпус
Модель SC833S2-R760
Форм Фактор 3U Rackmount
Размеры
Глубина 647мм (25.5")
Высота 132мм (5.2")
Вес Брутто 33.1 кг (73 lbs)
Доступные цвета Бежевый, Чёрный
Ширина 450мм (17.7")
Передняя панель
Кнопки Power On/Off button System Reset button Alarm Mute Switch
Индикаторы Power LED Network activity LED System Overheat LED
Порты (Optional front USB ports via 5.25\" Drive bay)
Слоты расширения
PCI-Express 2 (x8) PCI-e slots 1 (x4) PCI-e (using x8) slot
PCI-X 2x 64-bit 133MHz PCI-X (3.3V) slots 1x 64-bit 100MHz PCI-X (3.3V) slot
Системный BIOS
Особенности BIOS Plug and Play (PnP) SMBIOS 2.3 DMI 2.1 PCI 2.2 ACPI 1.0 USB Keyboard support Hardware BIOS Virus protection
Тип BIOS 8Mb Flash EEPROM with Phoenix® BIOS
Мониторинг состояния
Вентилятор Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans 8x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Индикатор CPU / System Overheat LED
Процессор Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
Температура Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors PSU I2C temperature sensing logic Thermal Monitor 2 (TM2) support
Другие особенности Chassis intrusion detection Chassis intrusion header SDDC Support
Охлаждение системы
Воздухоотвод 1x Air Shroud
Вентиляторы 4x 9cm 5,000 RPM Hot-swappable Fans 2x 8cm 5,000 RPM Rear Exhaust Fans
Отсеки для дисков
Hot-swap 8x 3.5\"SCA Ultra320/160 Hot-swap Drives
Периферийные отсеки 3x 5.25\" Peripheral Drive Bay 1x 5.25\" Bay For Floppy Drive
Периферийные диски
DVD-ROM Panasonic 8x DVD, 24x CD, DVD-ROM Drive
Floppy TEAC 3.5\" 1.44MB Floppy Drive (beige / black)
SCSI Backplane
Dual Channel SCSI Backplane w/ Enclosure Managmement (SAF-TE)
Электропитание
+12V 50.0 Amp (combined)
+3.3V 36.0 Amp
+5V 36.0 Amp
+5V режим ожидания 3.5 Amp
-12V 1.0 AAmp
760W Triple-Redundant AC to DC power supply with PFC
[ 24-pin, (8-pin, 4-pin)=12V ]
DC выход 5V + 3.3V ≤ 200W
Напряжение питания 100 - 240V, 50-60Hz, 14 - 8 Amp
Режимы эксплуатации / соместимость
Характеристики окружающей среды Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)
|
|||||||||
|
